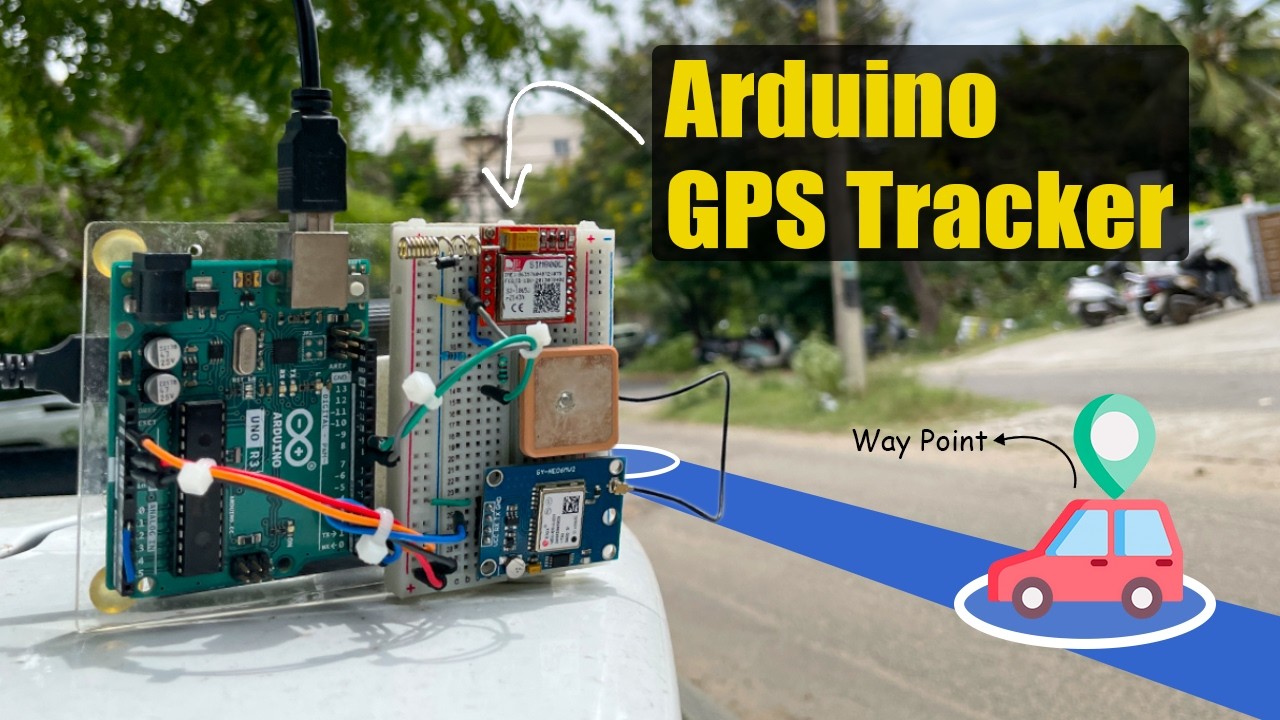

Arduino Location Tracker using SIM800L GSM Module and NEO-6M GPS Module

Arduino Location Tracker using SIM800L GSM Module and NEO-6M GPS Module

This project implements a sophisticated location monitoring solution by integrating the NEO-6M GPS module with SIM800L GSM technology on an Arduino Uno platform. The system captures precise GPS coordinates using satellite triangulation, processes the data through the Arduino's microcontroller, and transmits real-time location updates via 2G cellular networks. By leveraging AT commands for GSM communication and NMEA protocol parsing for GPS data extraction, the tracker achieves sub-10-meter accuracy while maintaining low power consumption. The embedded system features automated SMS alerts, remote query capabilities, and can be easily integrated with web-based mapping APIs for comprehensive asset tracking applications. This IoT-enabled solution demonstrates practical implementation of embedded systems, wireless communication protocols, and geolocation services in a compact, cost-effective package suitable for vehicle tracking, personal safety devices, or remote asset monitoring applications.

Key Technical Features:

Real-time GPS coordinate acquisition, GSM/GPRS data transmission, Arduino-based embedded control, UART serial communication, and scalable IoT architecture.

Components Required

1. Arduino Uno R3 DIP
2. SIM800L GSM module
3. NEO-6M GPS Module
4. Breadboard
5. Resistors
6. Jumper wires

Circuit Diagram

System Architecture

NEO-6M GPS Module → Captures satellite coordinates

Arduino UNO R3 → Processes GPS data and controls communication

SIM800L GSM Module → Transmits location data via 2G cellular network

GeoLinker Cloud → Stores and displays tracking data online

Key Operating Principle

1. GPS Data Acquisition

NEO-6M continuously receives satellite signals and outputs NMEA-formatted location data

Arduino reads this GPS data through serial communication (Pin 0)

2. Data Processing & Mode Switching

Due to Arduino UNO's limited 2KB RAM, the system uses automatic mode switching

Pin 2 connected to RST enables switching between GPS mode and GSM mode

This prevents memory corruption from handling both GPS parsing and GSM HTTP requests simultaneously

3. Cellular Transmission

SIM800L connects to a 2G network using carrier APN settings

Location data gets transmitted to the GeoLinker Cloud platform via GPRS

The system includes retry mechanisms for failed transmissions

4. Cloud Integration

GeoLinker Lite library handles all communication protocols

Data appears on the CircuitDigest Cloud dashboard for real-time tracking

Supports up to 100,000 data points per free account

Critical Technical Details

Power Requirements:

1. Must use external power supply (power bank/5V adapter)
2. SIM800L draws up to 2A during transmission - USB ports are insufficient

Voltage Level Protection:

1. SIM800L operates at 3.3V, Arduino at 5V
2. Voltage divider circuit protects SIM800L from damage
3. Diode drops Arduino 5V to ~4.3V for SIM800L power

Memory Management:

1. Custom GeoLinker Lite library optimised for a 2KB RAM constraint
2. The automatic reset system prevents memory overflow
3. Single-mode operation (GPS OR GSM, never both simultaneously)

For more Technical information, you can check our source on the Arduino GPS Tracker Project.

Real-World Applications

1. Vehicle tracking and fleet management
2. Personal safety devices
3. Asset monitoring for remote equipment
4. IoT location services
