Project Description:

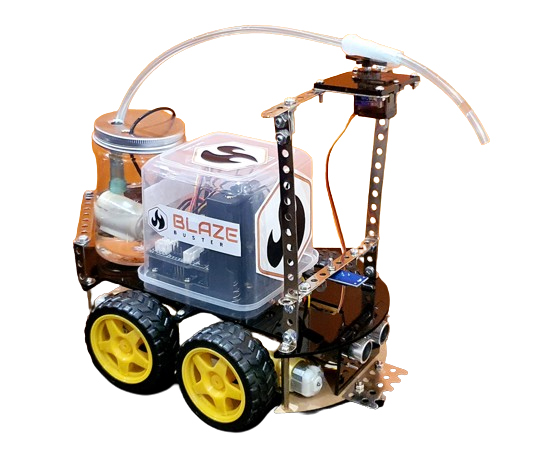

An Arduino based Fire Fighting Bot, called Blaze Buster. Which automatically detects for flame while moving in a random path and upon detecting any flame activates its water pump and servo motor for even splashing of water.

This project is the definitive Masterclass in Autonomous Rescue Robotics and Environmental Safety Engineering. The Blaze Buster is a high-performance Fire-Suppression Tactical Bot designed to venture where it is too dangerous for humans. By integrating Spectral Flame Sensors to identify the "Infrared Flash" of a fire and Ultrasonic "Radar" for navigating chaotic environments, this project proves how Arduino-based AI can autonomously locate a fire source and trigger a high-pressure water spray to extinguish it in seconds.

Suppression Infrastructure and Search Architecture Overview

The Blaze Buster Robot functions through a specialized Patrol-Identify-Suppress lifecycle. The system is built on a high-response Hazard-Logic-Loop:

1. Autonomous Pathfinding (Randomized Patrol): The robot uses an HC-SR04 ultrasonic sensor to avoid walls and furniture, moving in a "Safe Trajectory" until a fire is detected.
2. Spectral Flame Detection: The HW-491 sensor scans the 760nm-1100nm infrared spectrum. When a flame is spotted, the Arduino interrupts the patrol logic and steers the 4WD chassis directly toward the heat source.
3. Active suppression (Water Pump & Servo): Once in range, the Arduino triggers the 5V submersible pump and uses an SG90 servo to oscillate the water nozzle left and right, ensuring a wide, high-fidelity coverage area for rapid fire death.

Project Working:

1. Blaze Buster upon starts detects for any objects in its path using UltraSonic Sensors.
2. If no object detected, it follows a random path.
3. As soon as it detects any Flames, by using its Flame Sensor, it gives a signal to the Water Pump and Servo Control through Arduino.
4. Once signals received, the water pump starts and splashes water by using its servo motor.
5. The bot keeps on moving in random path detecting flames.
6. The loop continues.

Hardware Infrastructure & The Power Tier

• Arduino UNO R3 (The Tactical Core): It manages the simultaneous task of filtering IR sensor noise, calculating motor PWM for steering, and timing the water pump bursts.
• 4WD Robotic Chassis: A high-clearance engineering design. The four independent motors provide the high-torque needed to carry the weight of the water tank over uneven surfaces.
• Submersible DC Water Pump: A critical suppression component. Despite its small size, it provides a high-flow jet through a 5mm flexible pipe, capable of reaching flames from over 30cm away.
• L298N Dual H-Bridge Module: The "Propulsion Driver." It allows the 5V Arduino to control the high-current 12V motors, providing the fast "Turn-on-a-Dime" steering required for accurate fire targeting.
• Dual 18650 Li-ion Battery Plant: Selected for its high discharge rate, providing the intense power bursts needed to run four motors and a water pump simultaneously.

Technological Logic and Fire-Fighting Algorithms

The system reaches professional-grade reliability through several Firmware Tactical Strategies:

1. Spectral Filtering Logic: The code uses a thresholding algorithm for the flame sensor, ensuring that normal indoor lighting (LED/Fluorescent) does not trigger a "False Positive" suppression event.
2. Articulated Spray Choreography: Instead of a static jet, the Arduino uses a "Sweep" loop on the servo. This ensures the water is "Brushed" across the fire's base, which is significantly more effective at cooling the fuel source.
3. The "Safety Distance" Protocol: Using the ultrasonic sensor, the robot stays exactly 10-15cm away from the fire. This prevents the plastic electronics and chassis from melting while keeping the water jet within its effective range.
4. Post-Suppression Confirmation: After the pump stops, the Arduino re-scans the area. If the flame sensor still reports "HIGH," the bot re-initiates the spray cycle until the "All-Clear" is received.

Why This Project is Important

Mastering Thermal Sensing, High-Current Switching, and Autonomous Navigation is an essential skill for Robotics Engineers and Safety Designers. It teaches you how to design "Intelligent Agents" that prioritize human welfare by handling dangerous tasks. Beyond hobbyist fire-bots, these same principles are used in Warehouse Fire-Suppression Rovers, AI Forest Fire Drones, and Nuclear Reactor Inspection Mobiles. Building this project proves you can engineer a complex, multi-modal robotic asset that prioritizes real-world safety and high-fidelity tactical performance.
