Note: This tutorial could be outdated, please go here for a more current version.

Intro: Arduino IoT Cloud

Arduino IoT Cloud is a platform that enables anyone to build IoT connected object with ease. In order to control our TV using Alexa, we'll also be using the Official Arduino Alexa Skill .

If you are new to Arduino IoT Cloud, we advise to first take a look at this introductory project , which will give you an overview and guide you through the process of setting up one of the supported boards, IoT Cloud Things and Properties and get you onboard.

Part 1: How to Control a TV Set

The easiest way to control any kind of television, is to act as if we were its very own remote infrared controller. In order to do so, we'll have to listen for the signals the remote will send, capture the data and mimick it with our Arduino board. Once the circuit is assembled, we'll upload this sketch to our board. It will traslate the IR signal bursts generated by remote button presses into an array of unsigned integers. Let's point the remote at the Arduino IR Receiver we built and press the following buttons:

  1. POWER/STANDBY
  1. CHANNELS FROM 1 TO 9
  1. VOLUME UP
  1. VOLUME DOWN
  1. MUTE
  1. CHANNEL UP
  1. CHANNEL DOWN

We'll see the values coming through the Serial Monitor , reported as rawData . Let's take note of them into a text file for now, and assign each list its own array name ( chan1 , chan2 and so on). The following values are just for reference, and are generated by a Samsung's TV remote.

CHANNEL 1
unsigned int chan1[67] = {4450,4500, 550,1700, 500,1700, 550,1700, 550,550, 550,600, 500,600, 550,550, 550,600, 500,1700, 550,1700, 550,1700, 500,600, 500,600, 550,550, 550,600, 500,600, 550,550, 550,600, 500,1700, 550,600, 500,600, 550,550, 550,600, 500,600, 550,1700, 500,1700, 550,600, 500,1700, 550,1700, 550,1700, 500,1700, 550,1700, 500};
CHANNEL 2
unsigned int chan2[67] = {4500,4500, 550,1700, 500,1700, 550,1700, 550,550, 550,550, 550,600, 500,600, 550,600, 500,1700, 550,1700, 500,1700, 550,600, 500,600, 550,550, 550,600, 500,600, 550,1700, 500,600, 550,1700, 500,600, 550,550, 550,600, 500,600, 550,550, 550,650, 450,1700, 550,600, 500,1700, 550,1700, 500,1700, 550,1700, 550,1700, 500};
CHANNEL 3
unsigned int chan3[67] = {4500,4500, 500,1700, 550,1700, 550,1700, 500,600, 550,550, 550,600, 500,600, 550,550, 550,1700, 500,1700, 550,1700, 550,550, 550,600, 500,600, 550,550, 550,600, 500,600, 550,1700, 500,1700, 550,600, 550,550, 550,550, 550,600, 550,550, 550,1700, 500,600, 550,550, 550,1700, 550,1650, 550,1700, 550,1700, 500,1700, 600};
CHANNEL 4
unsigned int chan4[67] = {4450,4450, 550,1700, 550,1700, 500,1700, 550,600, 500,600, 550,550, 600,550, 500,600, 550,1700, 500,1700, 550,1700, 550,550, 550,600, 500,600, 550,550, 550,600, 500,600, 550,550, 550,600, 500,1700, 550,600, 500,600, 550,550, 550,600, 500,1700, 550,1700, 550,1700, 500,600, 550,1700, 500,1700, 550,1700, 550,1700, 500};
CHANNEL 5
unsigned int chan5[67] = {4500,4500, 500,1700, 550,1700, 550,1700, 550,550, 550,550, 550,550, 600,550, 550,550, 550,1700, 550,1650, 550,1700, 550,550, 550,600, 500,600, 550,550, 550,600, 500,1700, 550,600, 500,600, 550,1700, 500,600, 550,550, 550,600, 550,550, 550,550, 550,1700, 550,1700, 500,600, 550,1700, 500,1700, 550,1700, 550,1700, 500};
CHANNEL 6
unsigned int chan6[67] = {4500,4500, 550,1650, 550,1700, 550,1700, 500,600, 550,550, 550,600, 500,600, 500,600, 550,1700, 500,1700, 550,1700, 550,550, 600,550, 500,600, 550,550, 600,550, 550,550, 550,1700, 500,600, 550,1700, 500,600, 550,550, 550,600, 500,600, 550,1700, 500,600, 550,1700, 500,600, 550,1650, 600,1650, 550,1700, 550,1650, 600};
CHANNEL 7
unsigned int chan7[67] = {4500,4500, 550,1700, 500,1700, 550,1750, 500,550, 550,600, 500,650, 500,550, 550,550, 550,1750, 500,1700, 500,1700, 550,650, 450,650, 500,550, 550,600, 500,650, 500,550, 550,600, 500,1700, 550,1750, 500,600, 500,550, 550,600, 500,650, 500,1750, 450,1700, 550,600, 500,650, 500,1700, 500,1700, 550,1750, 500,1700, 500};
CHANNEL 8
unsigned int chan8[67] = {4450,4550, 500,1700, 550,1700, 550,1650, 550,600, 500,600, 550,550, 550,600, 500,600, 550,1700, 500,1700, 550,1700, 550,550, 550,600, 500,600, 550,550, 550,600, 500,1700, 550,600, 500,1700, 550,1700, 500,600, 550,550, 550,650, 450,600, 550,550, 550,1700, 550,550, 550,600, 500,1700, 550,1700, 550,1700, 500,1700, 550};
CHANNEL 9
unsigned int chan9[67] = {4450,4500, 550,1700, 550,1700, 500,1700, 550,600, 500,600, 550,550, 550,600, 500,600, 550,1700, 500,1700, 550,1700, 500,600, 550,550, 550,600, 500,600, 550,550, 550,600, 500,1700, 550,1700, 550,1700, 500,600, 550,550, 550,550, 550,600, 500,1700, 550,600, 500,600, 550,550, 550,1700, 550,1700, 500,1700, 550,1700, 550};
VOLUME UP
unsigned int volUp[67] = {4500,4500, 550,1700, 500,1750, 500,1700, 550,600, 500,600, 500,600, 550,550, 550,600, 500,1700, 550,1700, 550,1700, 500,650, 450,600, 550,600, 500,650, 450,650, 500,1700, 500,1750, 500,1750, 500,550, 550,600, 500,650, 500,550, 550,600, 500,650, 500,600, 500,600, 500,1700, 550,1750, 450,1750, 500,1700, 550,1700, 500};
VOLUME DOWN
unsigned int volDown[67] = {4450,4550, 500,1700, 550,1700, 550,1650, 550,600, 550,550, 550,600, 500,600, 500,600, 550,1700, 500,1700, 550,1700, 550,550, 550,600, 500,600, 550,550, 550,600, 500,1700, 550,1700, 550,600, 500,1700, 550,600, 500,600, 500,600, 550,550, 550,600, 500,650, 500,1700, 500,650, 500,1700, 500,1750, 500,1700, 550,1700, 500};
CHANNEL UP
unsigned int chanUp[67] = {4500,4450, 550,1700, 550,1650, 550,1700, 550,550, 550,600, 550,550, 550,550, 600,550, 550,1650, 550,1700, 550,1650, 600,550, 550,550, 550,600, 500,600, 550,550, 550,550, 550,1700, 550,550, 600,550, 550,1650, 550,600, 550,550, 550,550, 550,1700, 550,550, 550,1700, 550,1700, 550,550, 550,1650, 600,1650, 550,1700, 550};
CHANNEL DOWN
unsigned int chanDown[67] = {4500,4450, 600,1650, 550,1700, 550,1650, 550,600, 550,550, 550,550, 550,600, 500,600, 550,1700, 500,1700, 550,1700, 550,550, 550,600, 550,550, 550,550, 550,550, 600,550, 550,550, 550,600, 500,600, 550,1650, 600,550, 550,550, 550,550, 600,1650, 550,1700, 500,1700, 600,1650, 550,550, 600,1650, 550,1700, 500,1700, 550};

Part 2: Arduino IoT Cloud

From the main Arduino IoT Cloud page, we'll create a new Thing and assign it a meaningful name. Let's call it TVRemoteController . We'll then select the board we are going to use. For this tutorial we used an Arduino Nano 33 IoT, but if you have another compatible board it will also be fine, just keep in mind that the pinout and the behavior of the IR library might change. If at this point you cannot see your board, you might have skipped the Getting Started procedure we mentioned above, if this is the case, go back through that process.

Once done, we'll add one Property to our Thing , it will represent our TV set. Under the Smart Home category, select "TV" as Property Type, set it as "Read & Write", and under "Update" select "When the value changes".

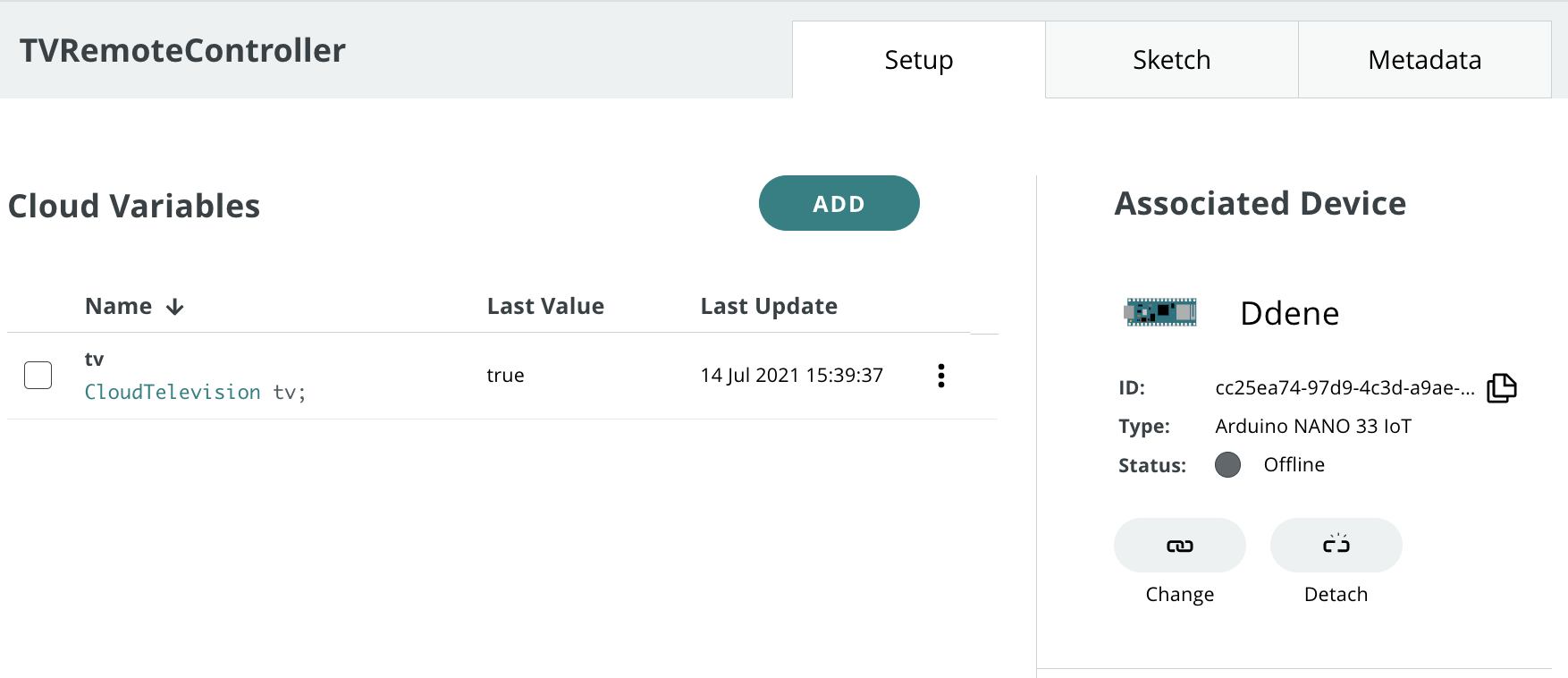

Here it is what the Properties view of our Thing should look like at this point:

Part 3: Arduino Web Editor

The time has come to click on the "Sketch" tab, which will show the embedded sketch editor, where we can add some custom code to the Sketch automatically generated by IoT Cloud.

The first thing we have to include is the IR Remote library, by Ken Shirriff.

#include <IRremote.h>

We then have to setup one two-dimensional array for our channels, and 6 arrays for the commands we need. If you remember, in Part 1 we captured some IR data which we'll now use to fill our arrays

const unsigned int chan[9][67] = {
	{chan1},
	{chan2},
	{chan3},
	{chan4},
	{chan5},
	{chan6},
	{chan7},
	{chan8},
	{chan9}
};
const unsigned int volUp[67] = {...};
const unsigned int volDown[67] = {...};
const unsigned int chanUp[67] = {...};
const unsigned int chanDown[67] = {...};
const unsigned int onoff[67] = {...};
const unsigned int mute[67] = {...};

Let's then setup the IR library and the required frequency (for this kind of application it will always be 38KHz)

IRsend irsend;
const int freq = 38;

We'll also need a function to send out IR commands and blink the built-in LED (at this stage mostly for debugging purposes). The delay value used will depend on the make and model of your television, so feel free to tweak it if things aren't working as expected (wrong commands or no commands received).

void sendIR(const unsigned int buf[]) {
	digitalWrite(LED_BUILTIN, HIGH);
	irsend.sendRaw(buf, 67, freq);
	delay(300);
	digitalWrite(LED_BUILTIN, LOW);
}

The final step is to complete the generated callback onTvChange() with some custom code in order to send IR commands when the TV property is changed by Alexa commands. For example, if the volume is increased, we have to virtually press the button Volume Up, if the channel is set to 7, we have to send the sequence for the channel 7 button, and so on.

void onTvChange() {
	Serial.println("==================");
	Serial.println("Switch:"+String(tv.getSwitch()));
	Serial.println("Volume:"+String(tv.getVolume()));
	Serial.println("Channel:"+String(tv.getChannel()));
	Serial.println("Mute:"+String(tv.getMute()));
	Serial.println("==================");
	if (first){
	    prevSwitch = tv.getSwitch();
	    prevVolume = tv.getVolume();
	    prevChannel = tv.getChannel();
	    prevMute = tv.getMute();
	    first = false;
	    return;
	}
	// Volume changed
	if (tv.getVolume() > prevVolume) {
	  tv.setMute(false);
	  prevMute = false;
	  for (int k = prevVolume + 1 ; k<=tv.getVolume(); k++) {
	    sendIR(volUp);
	    Serial.println("Volume requested:"+String(tv.getVolume())+" Set:"+String(k));
	  }
	  prevVolume = tv.getVolume();
	}
	else if (tv.getVolume() < prevVolume) {
	  tv.setMute(false);
	  prevMute = false;
	  for (int k = prevVolume - 1; k>=tv.getVolume(); k--) {
	    sendIR(volDown);
	    Serial.println("Volume changed:"+String(tv.getVolume())+" Set:"+String(k));
	  }
	  prevVolume = tv.getVolume();
	}
	// Mute changed
	if (tv.getMute() != prevMute && tv.getMute()) {
	  prevMute = tv.getMute();
	  sendIR(mute);
	  Serial.println("Mute changed:"+String(tv.getMute()));
	}
	else if (tv.getMute() != prevMute && !tv.getMute()) {
	  prevMute = tv.getMute();
	  sendIR(mute);
	  Serial.println("Mute changed:"+String(tv.getMute()));
	}
	// Channel changed
	if (tv.getChannel() != prevChannel) {
	  int newChannel = tv.getChannel();
	  if (newChannel > 0 && newChannel < 10) {
	    sendIR(chan[newChannel-1]);
	  } else if (newChannel > 9) {
	    if (newChannel > prevChannel) {
	      for (int ch = prevChannel; ch < newChannel; ch++) {
	        sendIR(chanUp);
	        Serial.println("Chan requested:"+String(newChannel)+" Set:"+String(ch));
	      }
	    } else if (newChannel < prevChannel) {
	        for (int ch = prevChannel; ch > newChannel; ch--) {
	          sendIR(chanDown);
	          Serial.println("Chan requested:"+String(newChannel)+" Set:"+String(ch));
	        }
	    }
	  }
	  prevChannel = newChannel;
	  Serial.println("Channel changed:"+String(tv.getChannel()));
	}
	// On/Off changed
	if (tv.getSwitch() != prevSwitch) {
	  prevSwitch = tv.getSwitch();
	  if (tv.getSwitch()) {
	    sendIR(chan[6]);
	  } else {
	    sendIR(onoff);
	  }
	  Serial.println("Switch changed:"+String(tv.getSwitch()));
	}

Part 4: Amazon Alexa

We will now need the Amazon Alexa app which can be downloaded from the Apple App Store or the Google Play Store . Once installed, login with your existing account or create a new one.

Let's go through the steps necessary to install the Arduino Alexa Skill and configure it to access and control our TV. We'll follow the sequence of images below to see all the required steps.

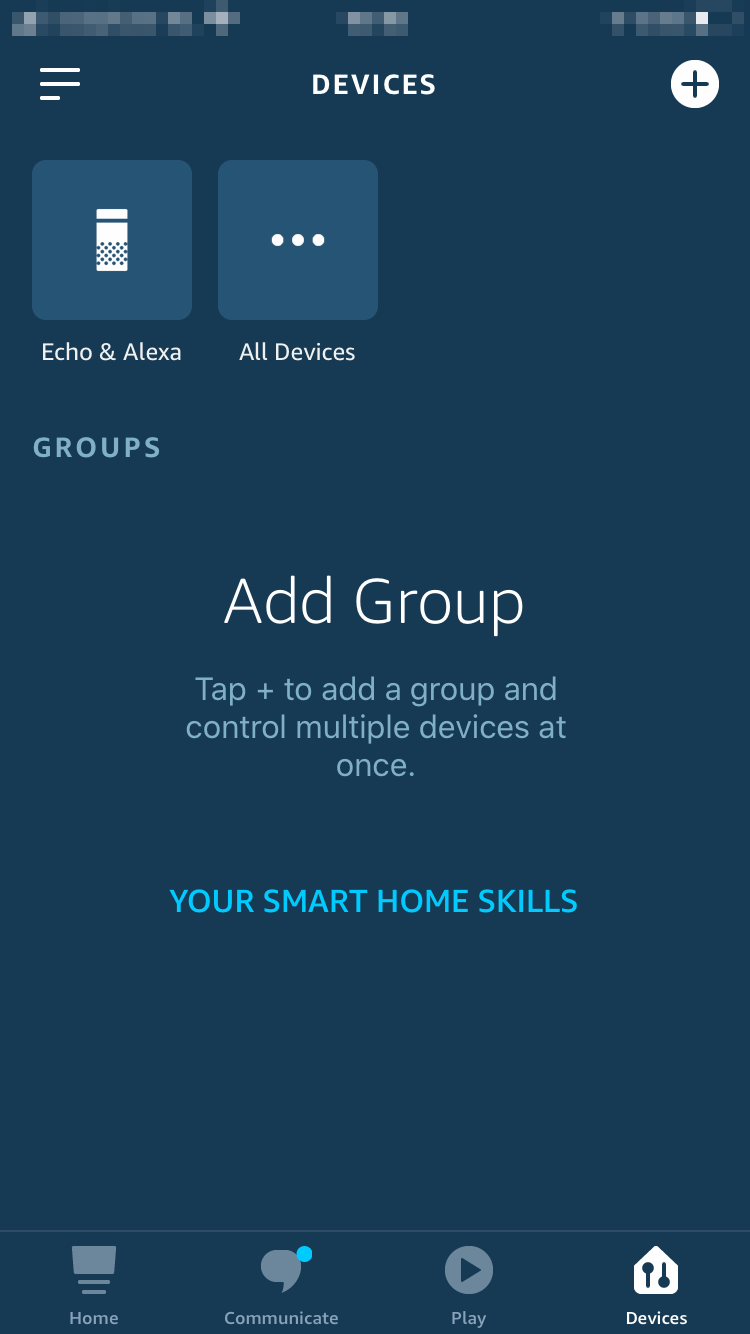

1/11: Tap on "Devices"

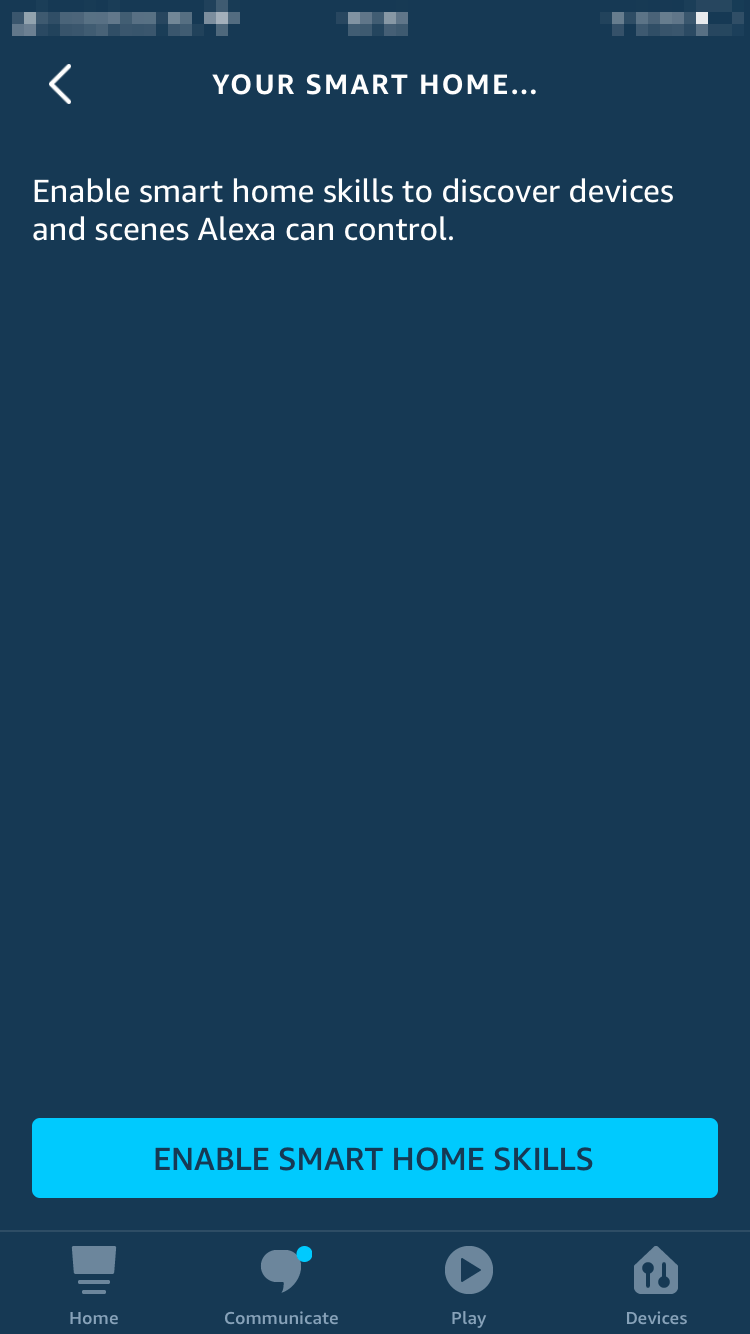

2/11: Let's now enable our Smart Home Skills

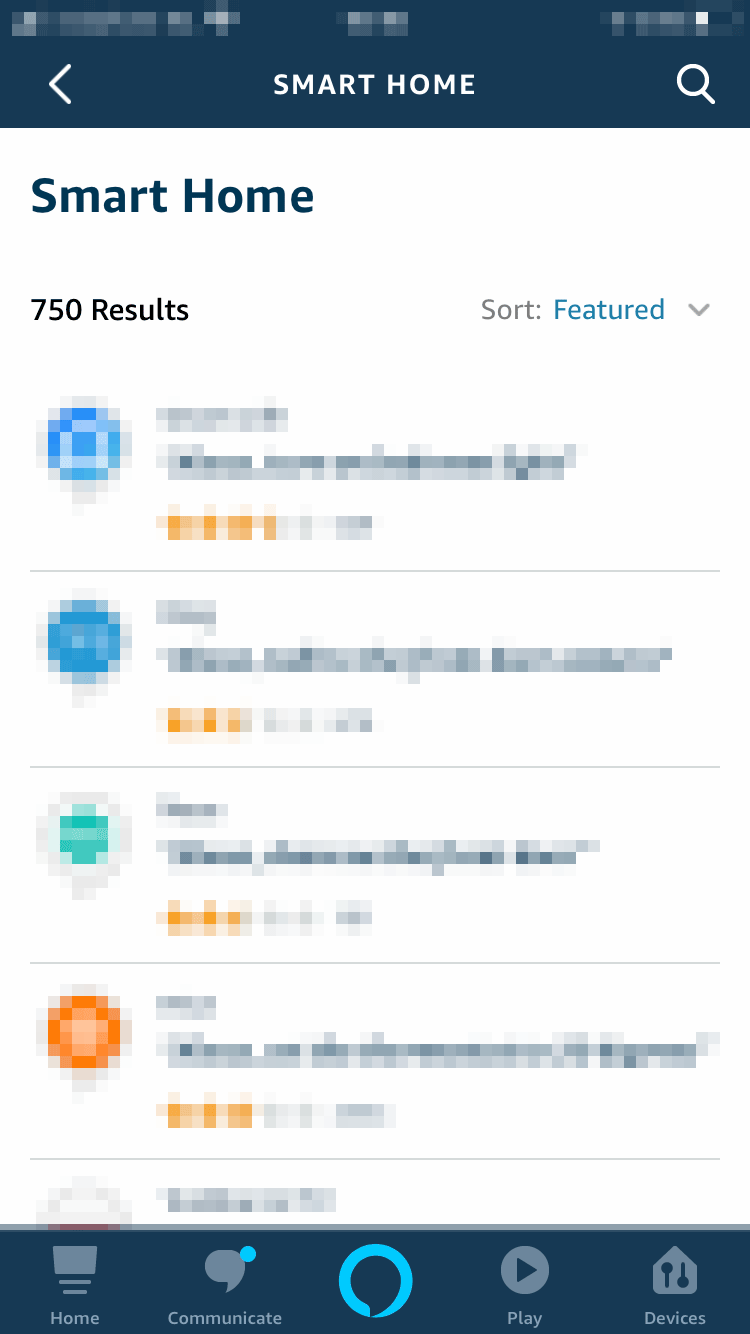

3/11: We'll be presented with the featured ones. Time to search for what we need :)

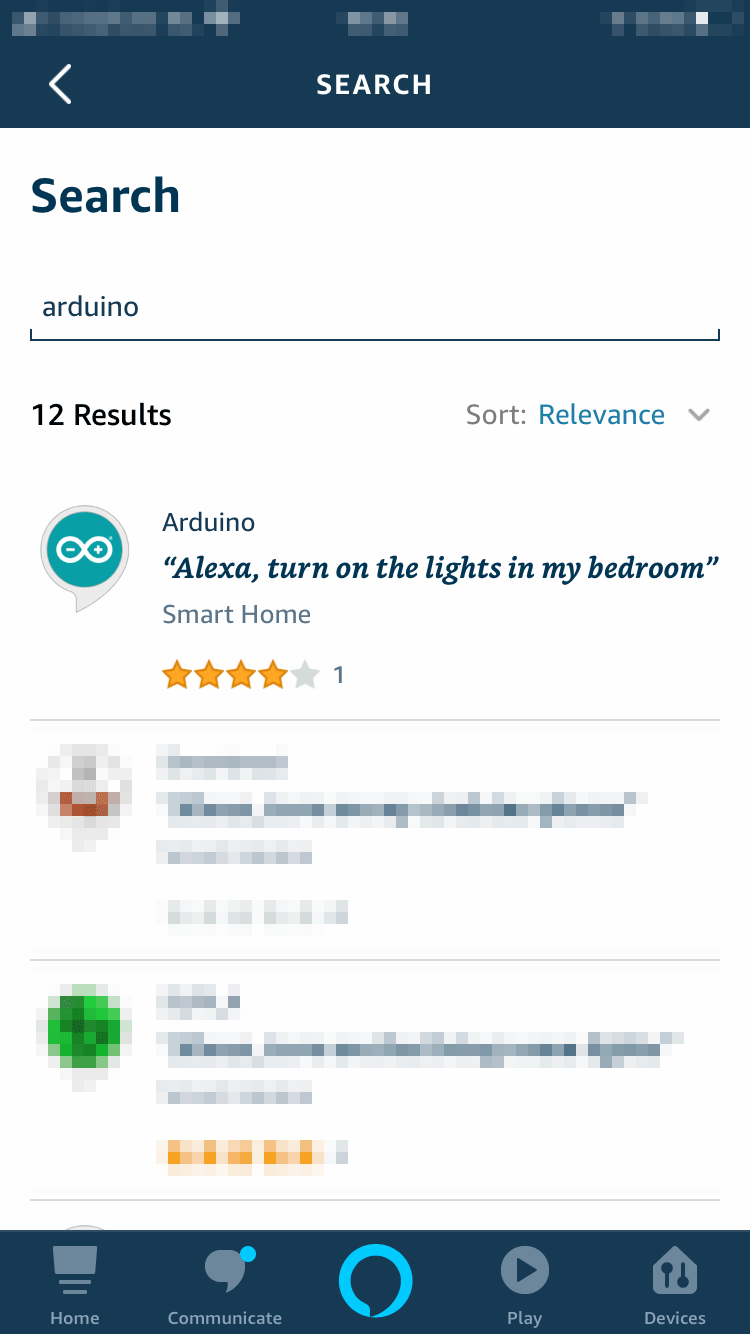

4/11: Typing "Arduino" and tapping "search" we'll obtain a list. That's the one we need!

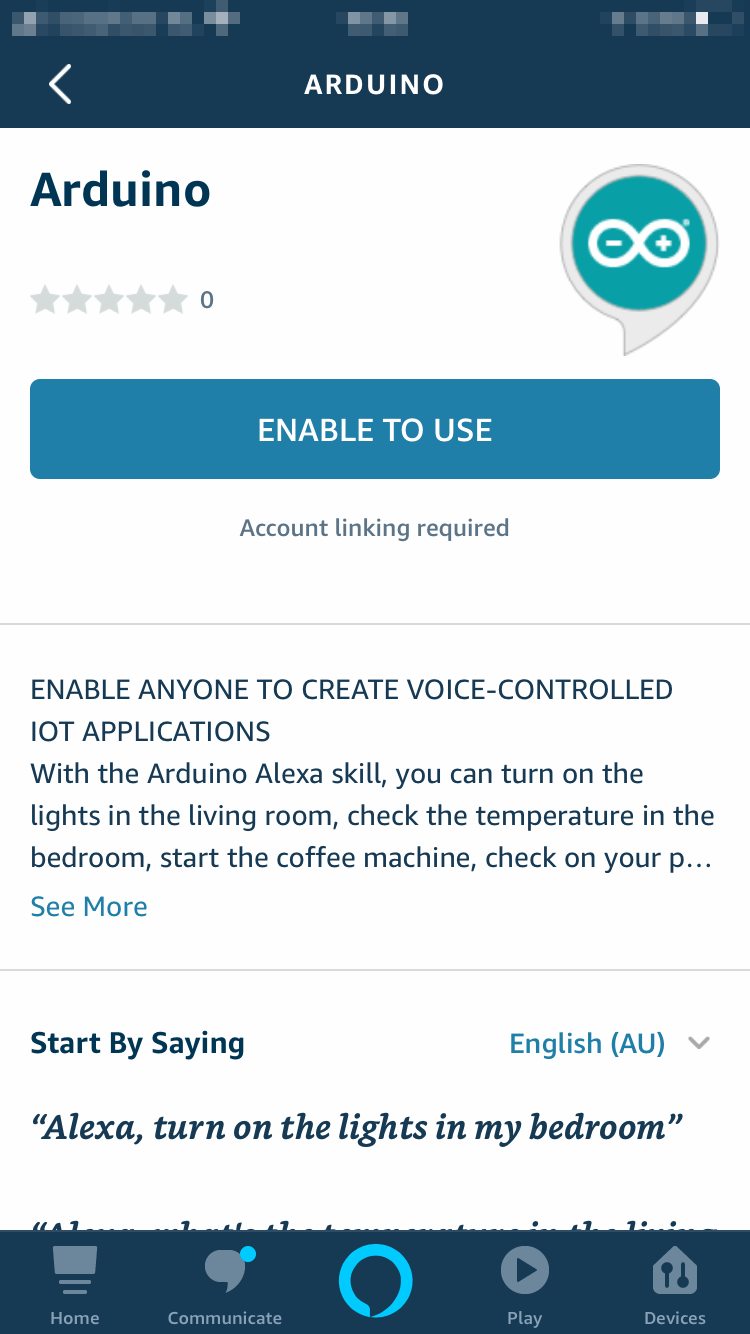

5/11: Once selected, we'll have to enable it

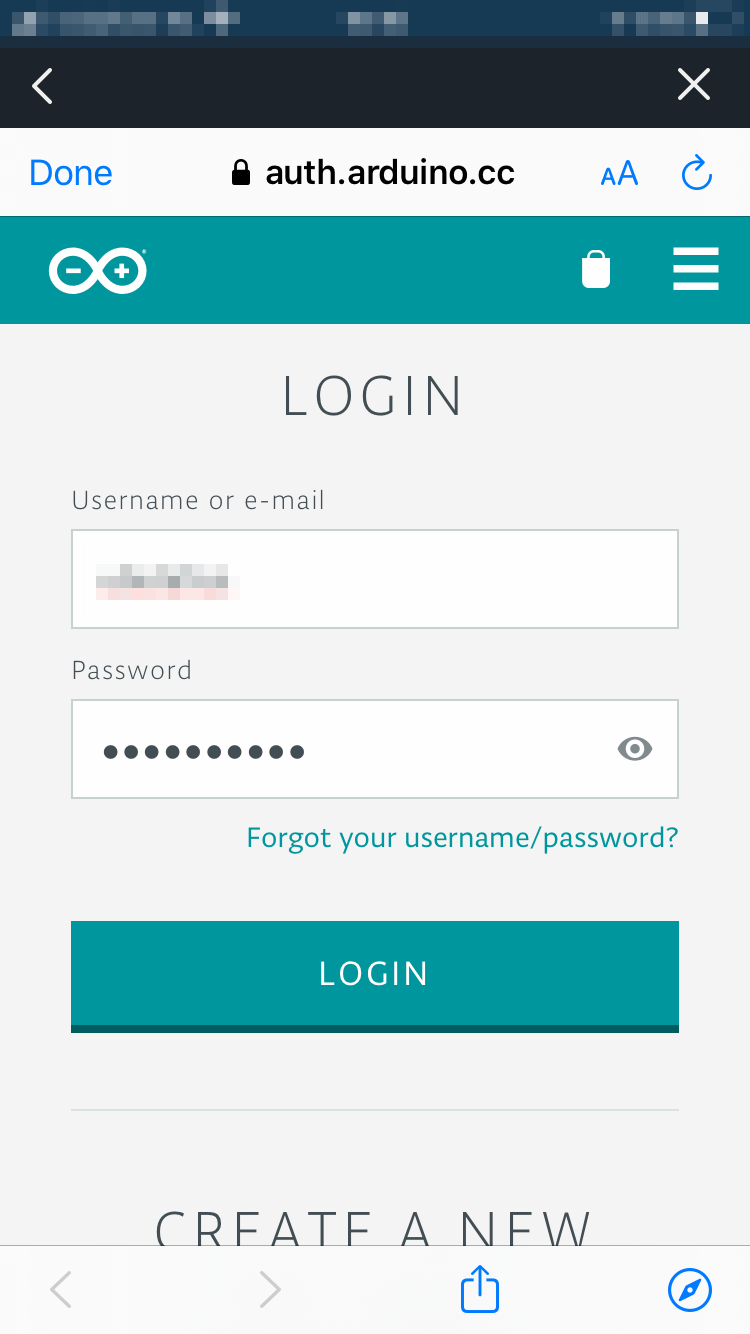

6/11: Let's login with our Arduino Create account credentials

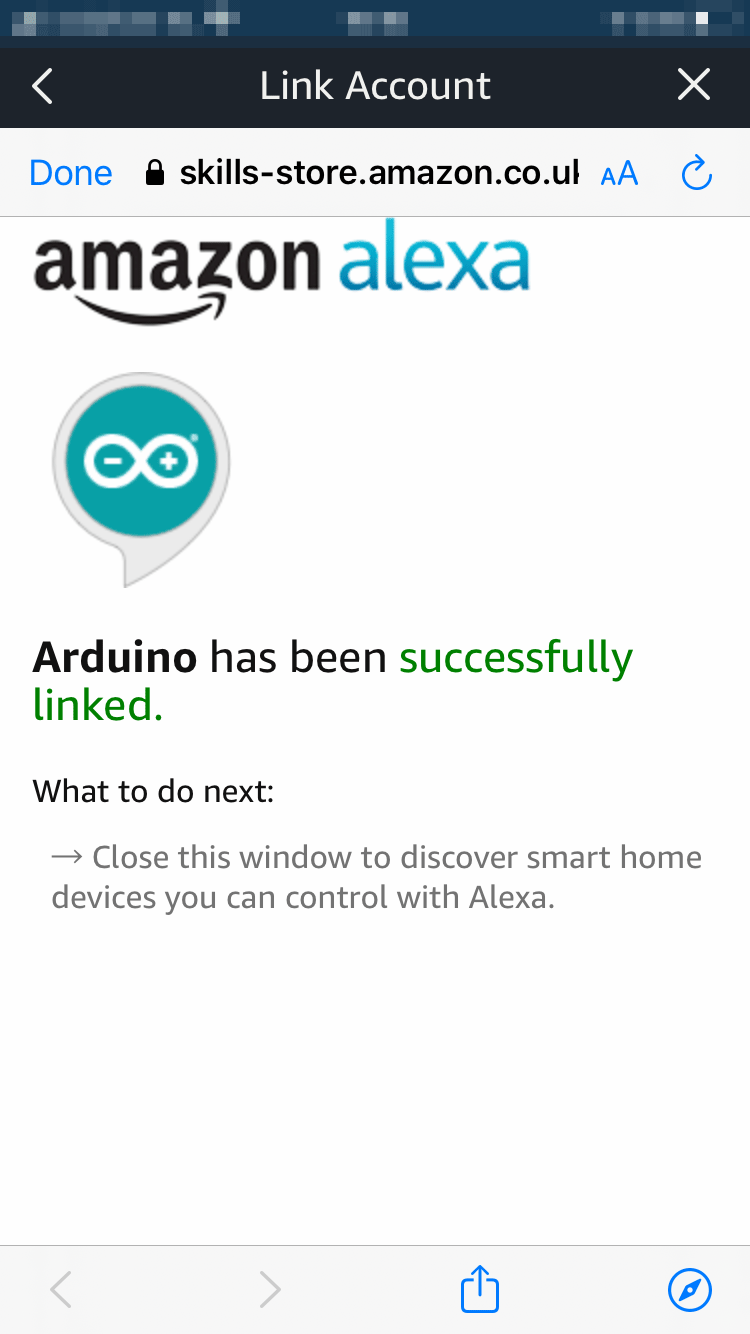

7/11: Our Alexa and Arduino IoT Cloud can now talk to each other :)

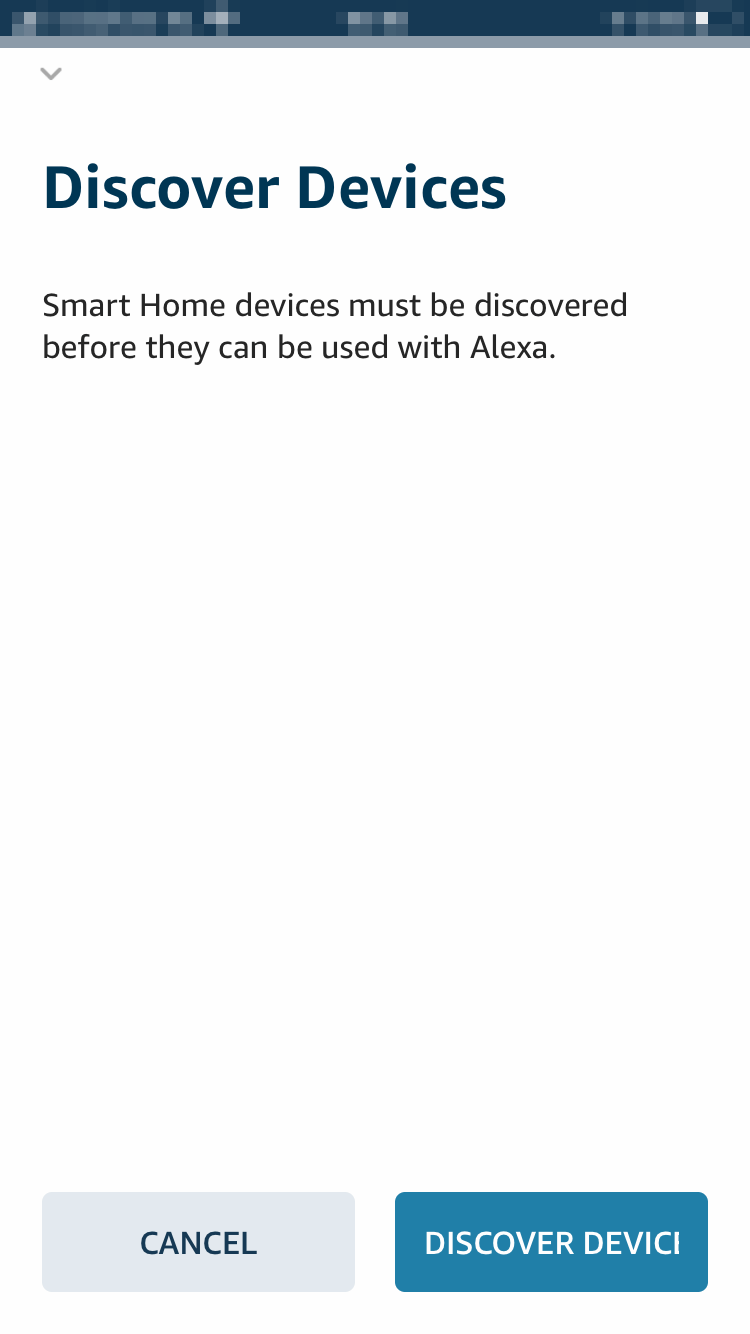

8/11: Time to discover our devices

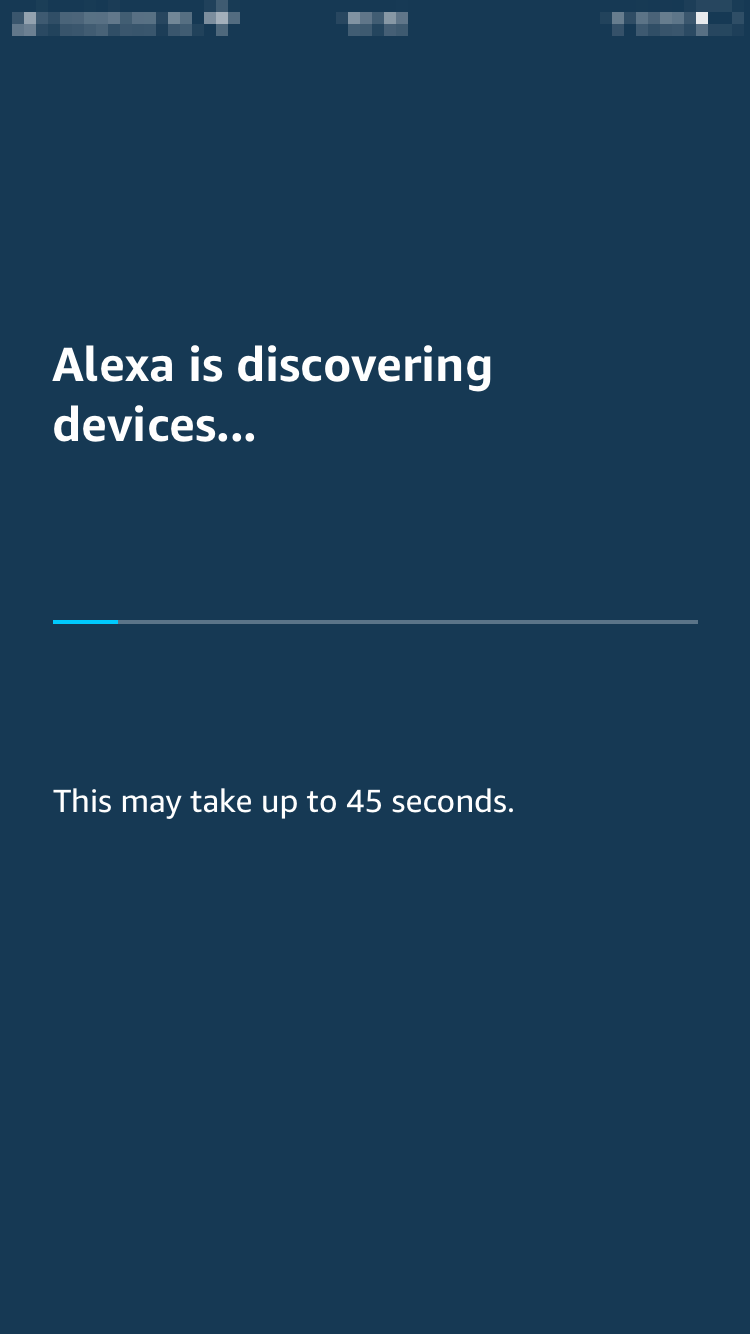

9/11: A little bit of patience won't hurt...

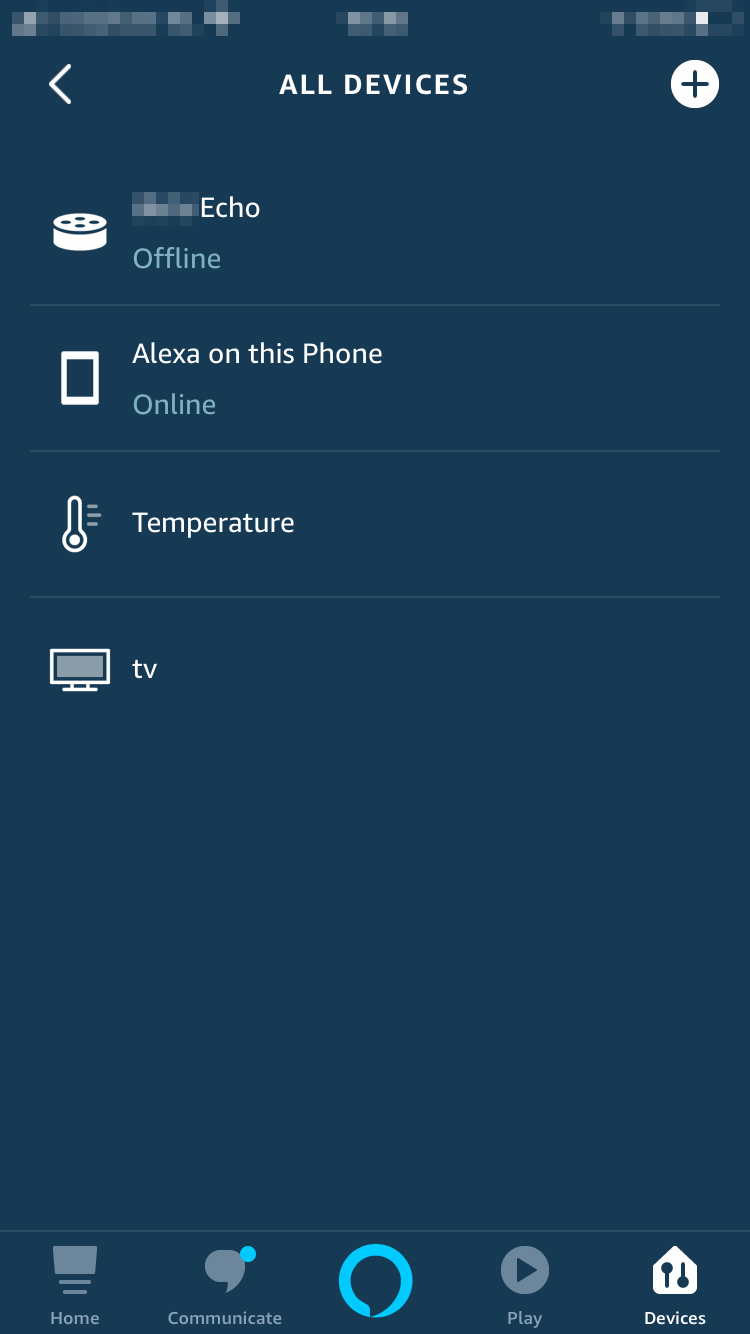

10/11: There is our TV, managed by IoT Cloud! Exciting :)

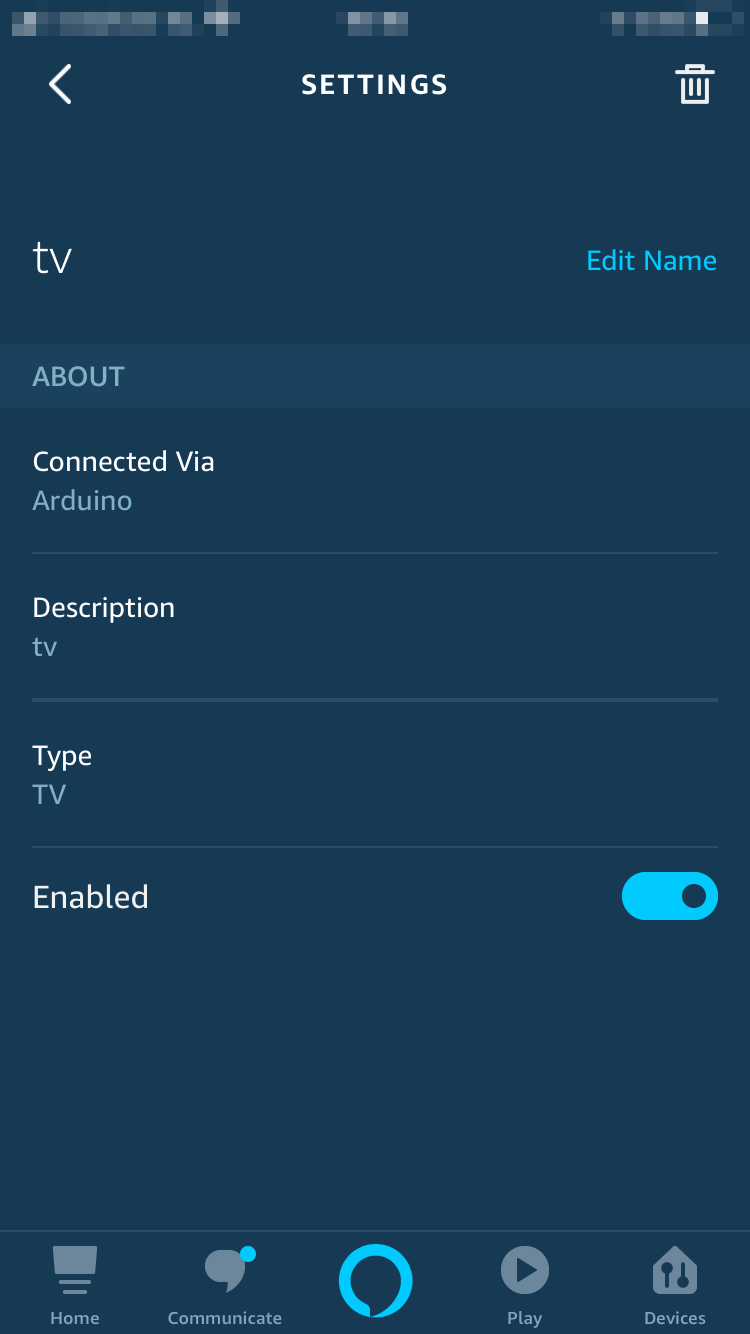

11/11: Let's tap on it to make sure it is enabled

We're done, it's now time to voice control our TV asking things like

  1. ”Alexa, turn the volume up on TV.”
  1. ”Alexa, mute TV" or “Alexa, unmute TV.”
  1. ”Alexa, next channel on TV.”

Have fun playing with Alexa and IoT Cloud. If you have questions and/or build this project let us know in the comments below.

Thank you,

The Arduino Team

EXPANDED TECHNICAL DETAILS

Voice-First Entertainment Automation

This project transforms any legacy IR-controlled television into an "Alexa-Enabled" smart device using the Arduino IoT Cloud.

  • Cloud-IR Virtual Transcoder: The a WiFi-enabled Arduino (like the MKR WiFi 1010) act as a middleman. When you say "Alexa, turn on the TV," the Arduino receives a cloud event and triggers its IR LED to blast the TV's specific "Power" HEX code.
  • Smart Assistant Integration: Leveraging the Official Arduino Alexa Skill, users can control volume, channel, and source using purely natural language, with the cloud handling the complex IoT handshake.

Custom macros

  • "Cinema Mode" Scene: A single voice command can trigger a macro that turns on the TV, switches to the HDMI1 input, and dims the smart lights simultaneously.
