Project Description: LunarScope - A Moon Phase Tracker and Display

Overview:

LunarScope is an Arduino-based project designed to calculate and display the current phase of the moon. Utilizing an OLED display and a Real-Time Clock (RTC), this device provides a clear visualization of the moon's phase, along with the number of days remaining until the next full moon. LunarScope is ideal for anyone interested in astronomy, moon phases, or celestial observation.

Features:

• Real-Time Clock Integration: The project uses an RTC to maintain accurate time and date, ensuring precise calculations of the moon's phase.

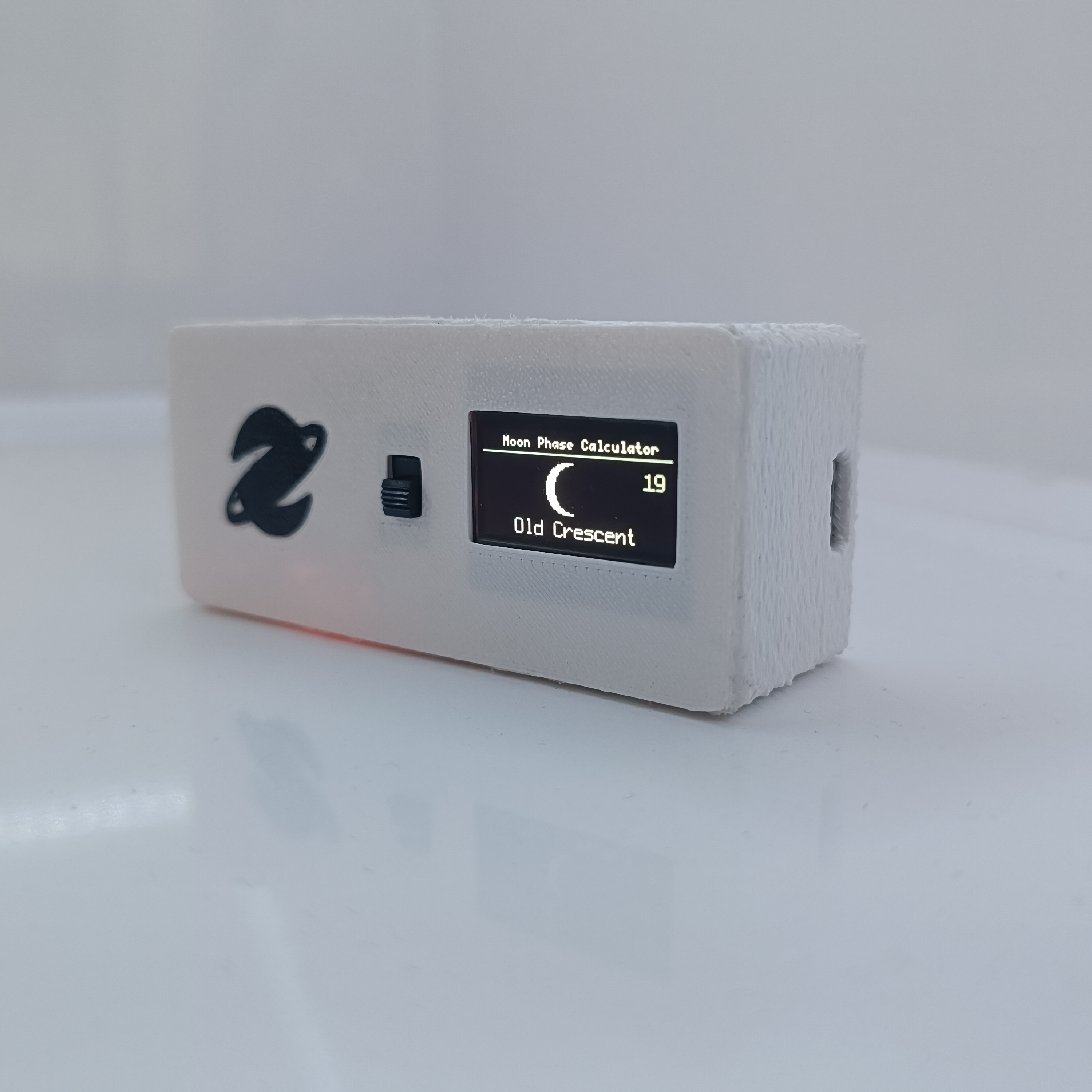

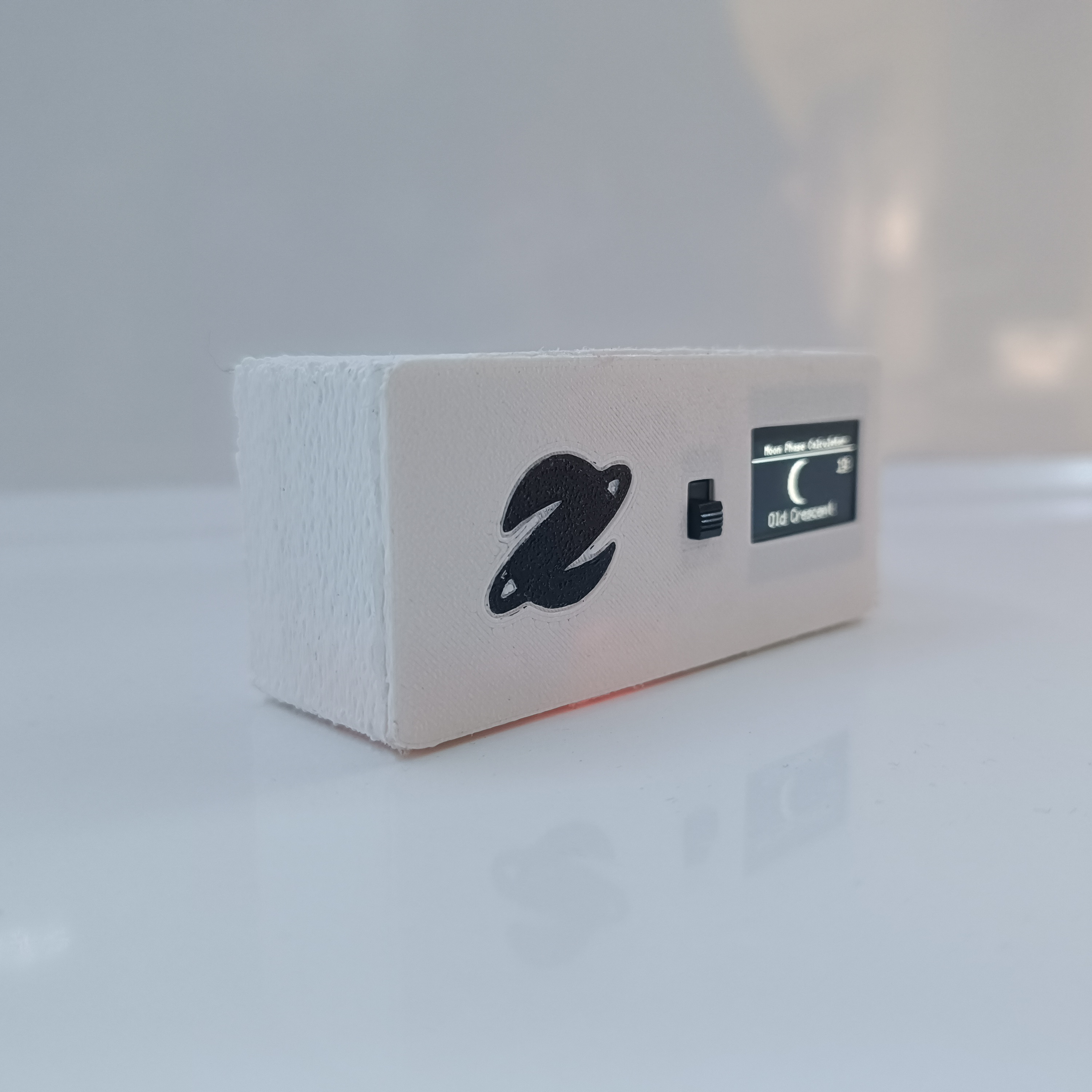

• OLED Display: A clear, easy-to-read OLED screen displays the current moon phase with graphical representations and text descriptions.
• Moon Phase Calculation: The system calculates the moon's phase based on the Julian Date, providing information on eight different moon phases: Full Moon, Waning Gibbous, Last Quarter, Old Crescent, New Moon, New Crescent, First Quarter, and Waxing Gibbous.
• Days Until Next Full Moon: LunarScope also displays the number of days remaining until the next full moon, offering a useful indicator for planning moon-related activities or observations.

Operation:

LunarScope updates its display continuously, providing real-time information about the moon's phase. As the RTC updates, the display reflects any changes in the moon's phase, ensuring accuracy throughout the day.

Applications:

• Astronomy Enthusiasts: LunarScope is a perfect tool for those who enjoy observing the moon and its changing phases.
• Education: This project can be used as an educational tool to teach about the lunar cycle and its various phases.
• Home Decor: The LunarScope can serve as a unique decorative piece, providing an interesting conversation starter.

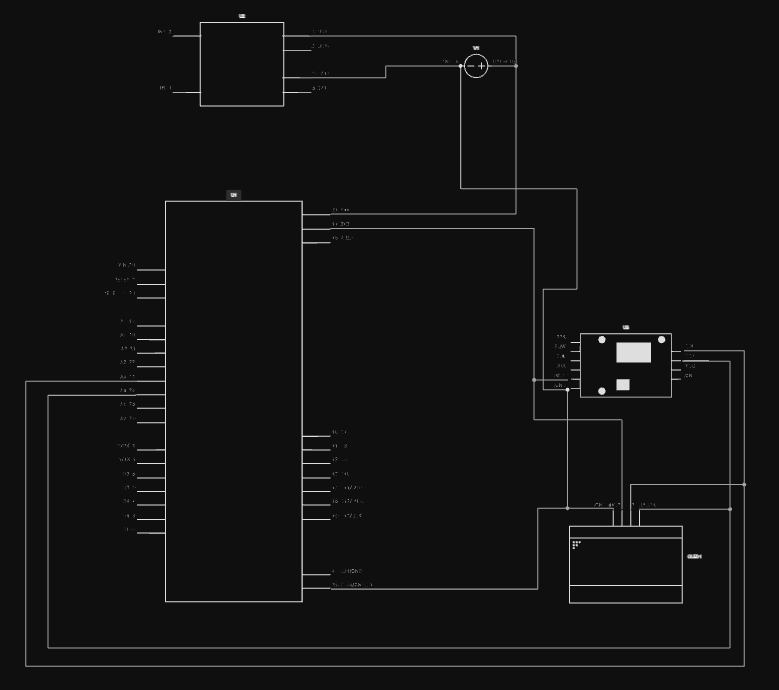

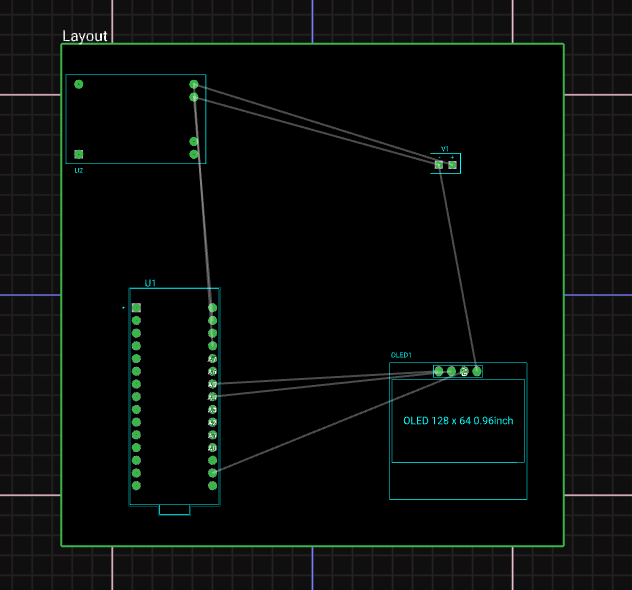

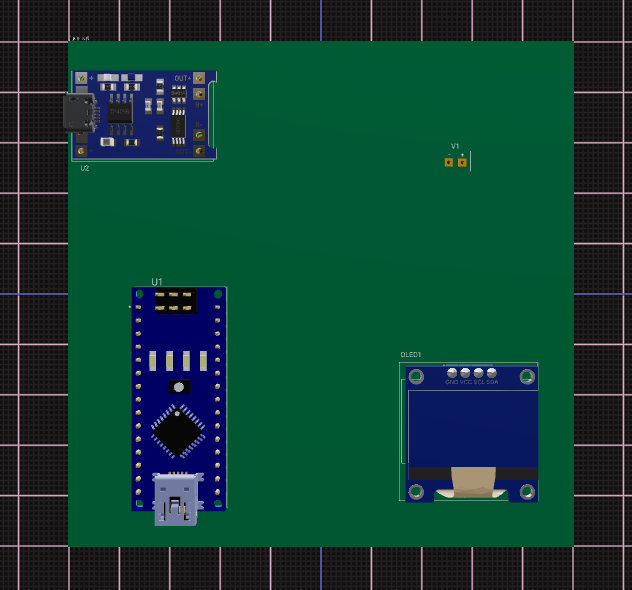

Materials and Components:

• Arduino board (e.g., Uno, Mega, etc.)
• OLED display (e.g., 128x64)
• RTC module (e.g., DS1307, DS3231)
• Connecting wires and breadboard
• A computer with Arduino IDE for programming

EXPANDED TECHNICAL DETAILS: Astronomical Tracking with the LunarScope

The core of the LunarScope's functionality lies in its precise astronomical calculations. The Earth rotates continuously, meaning celestial bodies drift out of your telescope's viewfinder within minutes. To create a more advanced tracking version, the LunarScope project can be extended to use precision math and stepper motors to counteract the Earth's rotation, keeping the moon perfectly centered in your eyepiece for hours.

The Math of Sidereal Time

You cannot just spin a motor at a random slow speed. You must match the Sidereal rate.

1. The Earth rotates 360 degrees every 23 hours, 56 minutes (one sidereal day).
2. The Arduino calculates exactly how many milliseconds should pass before pulsing the motor one single micro-step to match this rate.
3. Using libraries like AccelStepper and a high-precision DS3231 RTC Module for perfect timing, the Arduino commands the motor driver to execute smooth, micro-movements.

The Right Ascension Mount

For physical tracking, the system requires a telescope on an Equatorial Mount.

• You attach a NEMA 17 Stepper Motor to the mount's Right Ascension (RA) axis gear.
• A driver like the A4988 Stepper Driver receives the calculated, slow STEP pulses from the Arduino, turning the telescope smoothly against the sky's rotation.

Required Setup for Tracking:

• Arduino Uno/Nano: The astrometric calculator.
• NEMA Stepper Motor & Driver.
• RTC (Real-Time Clock) to ensure exact sidereal pacing.
• Telescope with a geared equatorial mount.

Future Enhancements:

• Customizable Settings: Add features to adjust the display's brightness or change between different graphical themes.
• Extended Information: Include additional data such as moonrise and moonset times, or provide astrological insights.
• Wireless Connectivity: Integrate Bluetooth or Wi-Fi for remote monitoring or control.
• Motorized Tracking: Implement the sidereal tracking system described above to automatically follow celestial objects.

Conclusion:

LunarScope is a versatile and engaging project for anyone interested in the moon and its phases. Whether for educational purposes, personal enjoyment, or as a unique addition to your home, LunarScope provides an insightful look into the lunar cycle. Its foundation can also be expanded into a sophisticated motorized tracking system for serious observation.
