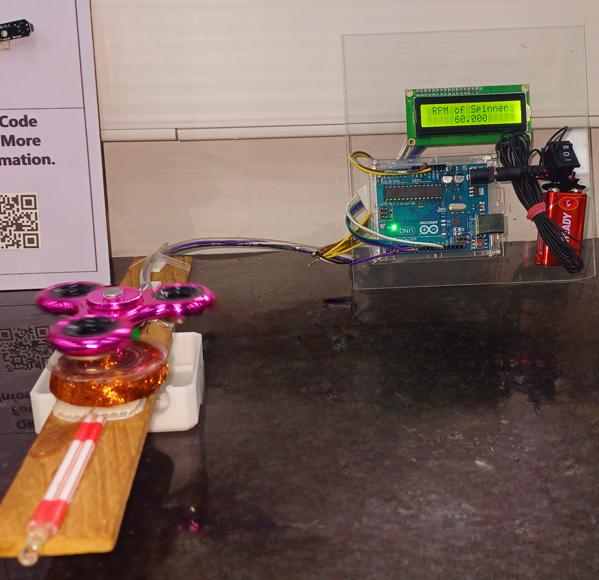

This project is the definitive Masterclass in Rotational Telemetry and Non-Contact Sensing Infrastructure. The RPM Tracker is a high-performance Digital Tachometer designed to measure the velocity of any rotating asset with laboratory-grade precision. By leveraging the Hall Effect—a phenomenon where a magnetic field generates a voltage difference—this project empowers you to track RPMs without physical friction, providing a high-fidelity output on a crystal-clear **I2C LCD Display**.

Telemetry Infrastructure and Sensor Architecture Overview

The RPM Tracker Framework functions through a specialized Detect-Interrupt-Calculate lifecycle. The system is built on a high-reliability Magnetic Flux Matrix:

1. Non-Contact Hall Detection: Unlike mechanical switches that wear out, the Hall Magnetic Sensor detects the passing of a button magnet without physical contact. This allows for measurements of extremely high speeds (thousands of RPM) with zero drag.
2. Hardware Interrupt Handshaking: The Arduino uses its specialized "Interrupt Pins" (D2/D3) to listen for the sensor. When the magnet passes, the current code execution is paused for a microsecond to record the exact timestamp, ensuring no "Pulse" is ever missed.
3. The (60,000 / Delta) Algorithm: The firmware calculates the time difference (DeltaT) between two pulses. By dividing one minute (60,000ms) by this delta, the system derives the real-time Revolutions Per Minute with sub-single-digit accuracy.

Hardware Infrastructure & The Precision Tier

• Arduino Uno R3 (The Logical Heart): A high-end chosen microcontroller that provides the stable 16MHz clock necessary for precise time-stamping of high-speed pulses.
• I2C 16x2 LCD Display: The "Visual HUD." By using the I2C Serial Bus, the display only requires two data wires (A4/A5), keeping the rest of the pins free for sensors and indicators.
• Button Magnet Trigger: A lightweight activator that can be mounted to spinners, fans, or motors. Its low mass ensures that the rotational balance of the target object is maintained.
• Magnetic Hall Sensor (A3144/Equivalent): A professional-grade solid-state component that converts magnetic flux into a clean digital "LOW" pulse, perfect for direct microcontroller input.

Technological Logic and Analytics Algorithms

The system reaches professional-grade reliability through several Firmware Orchestration Strategies:

1. Moving Average Smoothing: To prevent "Jitter" on the display, the code calculates the average of the last few readings, providing a stable, professional-grade readout even during rapid acceleration.
2. State-Change Debouncing: The logic is built to recognize the "Rising" or "Falling" edge of the magnetic field, preventing double-counts that can occur if the magnet dwells near the sensor.
3. Real-Time Data Serialization: Beyond the LCD, the system pushes data to the Serial Monitor at 9600 baud, allowing for external data logging or graphical representation in tools like Processing.
4. Hardware Scalability: The project includes Red LEDs that can be programmed as "Over-Speed Alarms," flashing when the RPM exceeds a safety threshold—a critical feature for industrial machinery.

Why This Project is Important

Mastering Magnetic Sensing and Hardware Interrupts is an essential skill for Automotive Engineers and Industrial Maintenance Technicians. It teaches you how to design a "Passive Monitoring System" that can measure physical movement without interfering with the machine's operation. Beyond fidget spinners, these same principles are used in ABS Braking Systems, Internal Combustion Ignition Timing, and Computer Cooling Fan Controls. Building this project proves you can engineer a professional-grade telemetry asset that prioritizes accuracy and high-speed responsiveness.
